HFR-ICATMAR
HFR system name:
HFR-ICATMAR
Spatial location:
Catalan Sea (NW Mediterranean Sea)
Sites (frequency):
AREN, BEGU, CREU, GNST, PBCN, SCAL, TOSS (13.5 MHz)
Manufacturer:
CODAR
Owning institution:
Government of Catalonia
Operating institution:
ICATMAR
EDMO code:
5801
Contact names:
Jordi Isern-Fontanet, Lucía Quirós-Collazos, Concepción Bueno-Herrero
Contact emails:
jisern@icm.csic.es; quiros@icm.csic.es; mconcepcion.bueno@gencat.cat
DOI:
Time coverage:
2023 - present
Description:

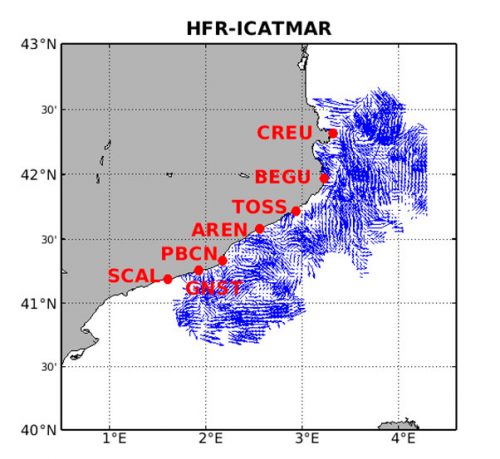

The ICATMAR HFR network is a CODAR Seasonde HF Radar system, retrieving hourly surface currents and waves along the Catalan Sea (northwestern Mediterranean Sea). It is composed by seven antennas, all of them emitting at a central frequency of 13.5 MHz, with a 90 kHz bandwidth. They offer hourly radial data with 1.66 km range resolution and 5 degrees angular resolution. The radial coverage is close to 80 km.
Publications:
- Quirós-Collazos, L.; Bueno-Herrero, C.; Martínez, J.; Llorach-Tó, G.; González-Haro, C.; Ribera-Altamir, J.; Ballabrera, J.; García-Ladona, E.; Isern-Fontanet, J.: Level 3 velocity products from ICATMAR High-Frequency Radar network. 2024, ICATMAR Technical Report, number 3, pp:27.
- Iglesias, J.; Llorach-Tó, G.; Ballabrera, J.; Isern-Fontanet, J.: Analysis of the first year’s performance of HR Radars in wave measurements and filtered data. 2024, ICATMAR Technical Report, number 4, pp:19.
HFR-ICATMAR
Citation:
ICATMAR, Government of Catalonia, & ICM-CSIC. (2023). HFR-ICATMAR; ICATMAR High Frequency Radar network . European HFR-Node.
https://doi.org/10.57762/QNQ0-G049
Operating Institution:
European Maritime, Fisheries and Aquaculture Fund and the Climatic Funds Program of the Government of Catalonia
